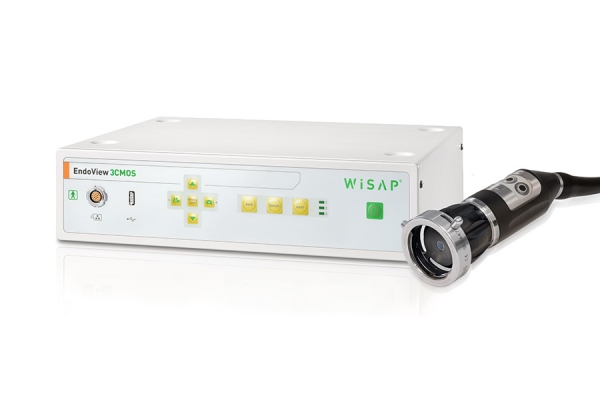

Endo-Digi View 3 CMOS HD Full HD Camera System

||||

The new family of full HD resolution endoscopic camera systems offers best image quality combined with image and video capture mode. The Endo-Digi View 3 CMOS HD camera head is light-weight, waterproof and has three remote buttons for user input during the operation. The buttons can be programmed by the user and offer great flexibility.

Endo-Digi View 3 CMOS HD Features:

  • Full HD 1920 x 1080 pixel.
  • High sensitivity enables brighter images.
  • High resolution implies sharp images.
  • Format 16:9
  • Digital HD-SDI output.
  • Camera settings via OSD.
  • 5 user profiles.
  • Low heat build up.
  • Exchangeable head cable.
  • Remote head keys.
  • C-Mount for objectives.

Endoview 3CMOS HD Electrical Data:

  • Mains voltage: Medical global power adaptor, 100 to 240 V, 50/60 Hz
  • Power consumption: Max. 20VA

Endoview 3CMOS HD Certification Data:

  • Approvals: The CE labeling is performed in accordance with the EU-guidelines 93/42/EWG, Annex II
  • Safety data: Class I according to 93/42/EWG I, Protection class I, Type BF

Wisap Endo-Digi View 3 CMOS HD

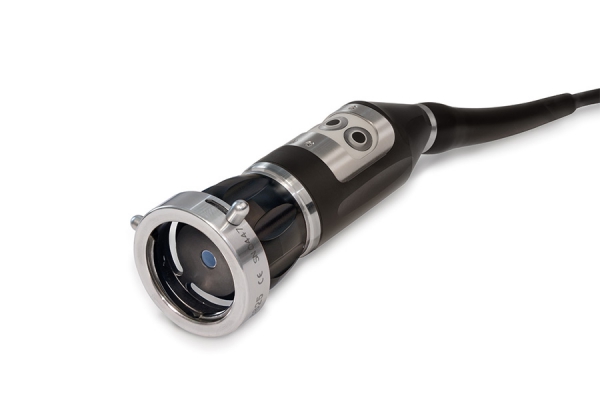

01. The angled camera cable facilitates the visual and tactile orientation.

02. Camera head buttons are equipt with user and remote control of accessory devices

03. Handy rest of the focus ring enables easy and low-friction manipulation.

04. C-mount optics 25 mm and further optics optional.

05. Optics coupling, made of stainless steel, which automatically adapts to any brand. Thus the camera can be prepared for any discipline within seconds.

Endoview 3CMOS HD Mechanical Data:

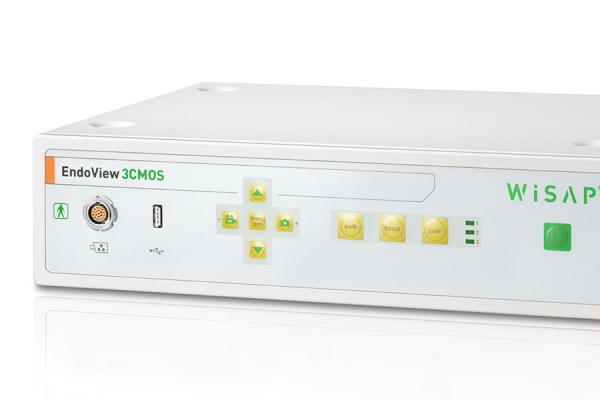

  •  Dimensions (Camera controller): w x h x d = 350 x 65 x 275 mm
  • Dimensions (Camera head): Ø max. 34mm x 73 mm
  • Casing: Stainless steel, aluminium / white coated
  • Objective connection: C-Mount
  • Camera Cable: 3 m / 9.8 ft highly flexible special cable, replaceable, short circuit proof
  • Weight (camera controller): 4,1 Kg
  • Weight (camera head): 145 g
  • Features: Boost - Function, Freeze -Function, 2.5 digital zoom, Character generator

Endoview 3CMOS HD System-Features :

  • Video Standard: Full HD 1920 x 1080
  • Chip: 1/3‘‘ MOS Sensitivity: < 3 lux (1/1.4)
  • Camera Head: With pushbuttons
  • Shutter: 1/50 (/1/60) to 1/100.000 sec
  • White Balance: auto Tracing, auto, Manually
  • User Menu: 3 scene files for user settings. operation with keypad and in Screen Menu
  • Features: Boost - Function, Freeze -Function, 2.5 digital zoom, Character generator
  • Video Out: 1x HDMI / DVI, 1x Y-Pb-Pr (Component), 1x Video (PAL / NTSC), 1x S-Video (PAL / NTSC)
  • Delivery contains: CCU, camera head with 3m cable, mains cable, Y/C cable, BNC cable, HDMI - DVI cable, HDMI cable, user manual
  • Features (optional): Image capture, video capture
