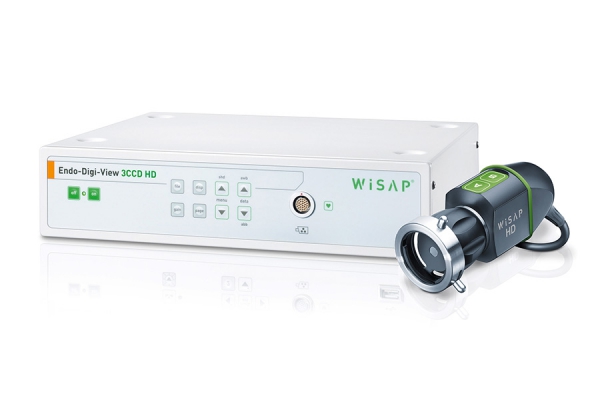

Endo-Digi View 3 CCD HD Full HD Camera System

The new family of full HD resolution endoscopic camera systems offers best image quality combined with image and video capture mode. The Endo-Digi View 3 CCD HD camera head is light-weight, waterproof and has three remote buttons for user input during the operation. The buttons can be programmed by the user and offer great flexibility.

Endo-Digi View 3 CCD HD Features:

  • Full HD 1920 x 1080 pixel.
  • High sensitivity enables brighter images.
  • High resolution implies sharp images.
  • Format 16:9.
  • Digital HD-SDI output.
  • Camera settings via OSD.
  • 5 user profiles.
  • Low heat build up.
  • Exchangeable head cable.
  • Remote head keys.
  • C-Mount for objectives.

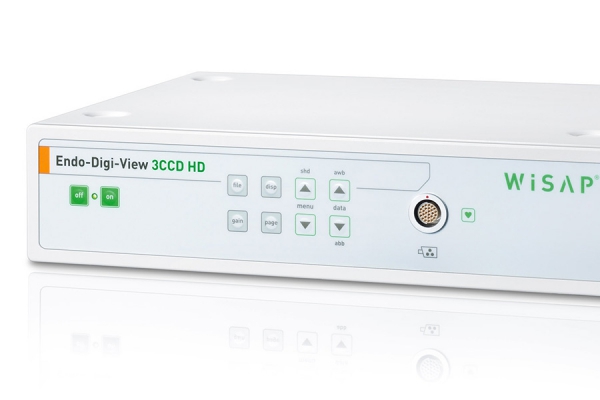

Camera Control Unit (CCU) Technical Data:

  • Video Standard: Full HD 1080i (50 Hz und 60 Hz / 59,94 Hz)
  • Shutter: Auto, Manually to 1/50.000 s
  • Gamma: On (Level adjustable), Off
  • White balance: Auto Tracing, Auto, Manually, adjustable Colour Matrix
  • Shading Correction: Auto, Manually, Off
  • Current consumpt.: max. 400 mA
  • Dimensions: w x h x d = 350 x 65 x 275 mm
  • Casing: Stainless Steel, Aluminium / white coated
  • Weight: 2,6 kg

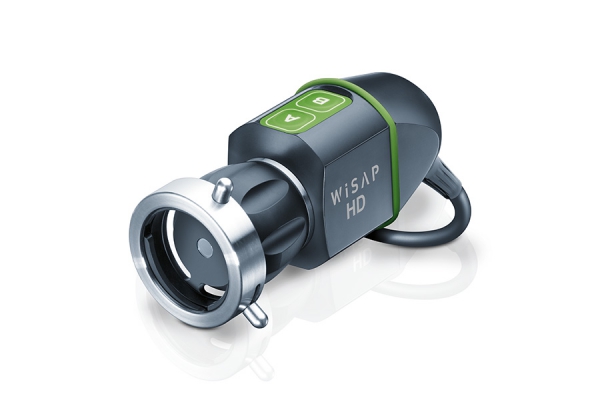

Wisap Endo-Digi View 3 CCD HD



01. The angled camera cable facilitates the visual and tactile orientation.

02. Camera head buttons are equipt with user and remote control of accessory devices

03. Handy rest of the focus ring enables easy and low-friction manipulation.

04. C-mount optics 25 mm and further optics optional.

05. Optics coupling, made of stainless steel, which automatically adapts to any brand. Thus the camera can be prepared for any discipline within seconds.

Camera Head Unit (CHU) Technical Data:

  • 3 x 1/3“ CCD
  • Scanning System: 2:1 interlace
  • Video Standard: Full HD 1080i (60 Hz / 59,94 Hz)
  • Resolution: 1920(H) x 1080(V) pixel
  • Line Frequency: 33,75 kHz (60 Hz)
  • Image Frequency: 50 or 60 Hz
  • Shutter: 1/60 s to 1/50.000 s
  • Specials: Colour-Shading-Correction, 6-Axis-Colour Correction, Automatically Black Balance, Gamma-Correction
  • Objective Con.: C-Mount
  • Objective: to be ordered separately, see order data
  • Camera Cable: 3 m/9.8 ft highly flexible special cable, replaceable, short circuit proof
  • Dimensions: ø max. 43 mm
  • Weight: 200 g
