CO2 Gas-Heating Modul

FLOW-THERME, Separate gas-heating modul / for any cold-gas insufflator

In the course of an operative endoscopy a few hundred liters of CO2 gas can be insufflated. Because of the size of the peritoneal surface and the resulting evaporative-cooling it results in cooling of the abdominal cavity (temperature in the abdominal cavity to <32° C). This can cause a Peritonalkatarrh which leads in turn to post-operative pain of the diaphragm and the shoulder.

After 3 years of studies it could be shown that by using gas heated up to body temperature, the postoperative use of analgesics was significantly reduced.

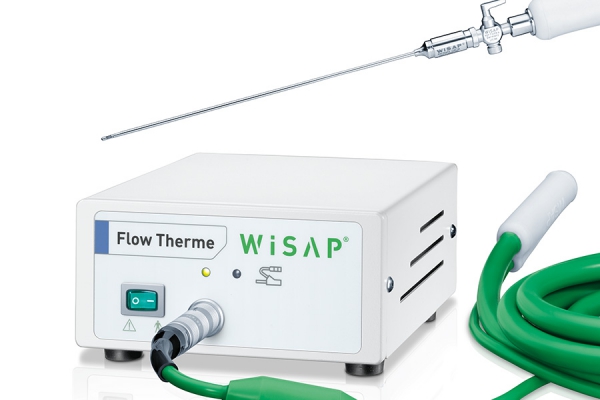

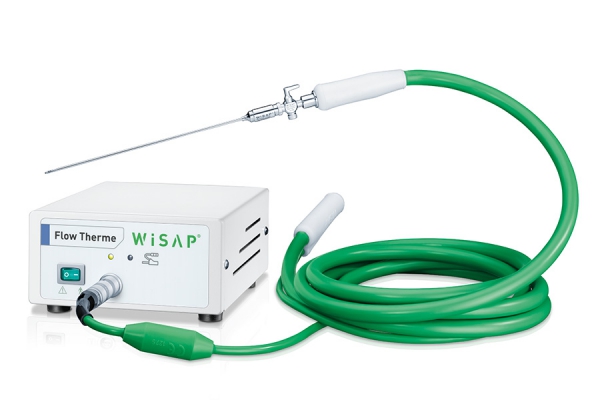

The CO2-Gas is heated up by the WISAP FLOW-THERME.

Technical Data

  • Mains voltage: Standard: 230 V-50 Hz
    Please indicate other requested voltages when ordering.
  • Power input: 55 VA
  • Dimensions: w x h x d = 150 x 80 x 170 mm
  • Casing: Stainless steel, aluminium / white coated
  • Weight: 2,2 kg
